PW1031T 10.1″ Android PoE Touch Panel with PoE & LED Status Bar
Core Highlights:
- Programmable LED Bars: Instantly visualizes room availability (Red/Green) via software API.
- Native PoE Support: Power and stable network data over a single RJ45 cable.
- Ultra-Narrow Bezel: Premium, sleek design perfectly fitting modern corporate glass or wood walls.
- Developer Ready: Android 11 with SDK/API access for deep hardware integration.
Technical Specifications
| Category | Parameters |
|---|---|
| Display | 10.1" LED IPS Panel, 1280*800, 16:10 |
| Touch Screen | 10-Point Capacitive Touch |
| Processor | Rockchip 3566, Quad-core up to 2.0GHz |
| RAM & Storage | 2GB DDR3 / 16GB ROM |
| OS | Android 11.0 |
| Network | RJ45 (100M, Supports PoE), Wi-Fi (b/g/n), Bluetooth 4.0 |
| I/O Ports | USB 2.0 *2, HDMI Out *1, TF Card Slot, 3.5mm Audio |
| Audio/Media | Built-in Mic, 2*1W Speakers, Supports up to 1080p Video |
| Optional | 2.0MP Front Camera, NFC/RFID Module |
| Mounting | Wall bracket included, Standard VESA |
Engineered for Commercial Excellence

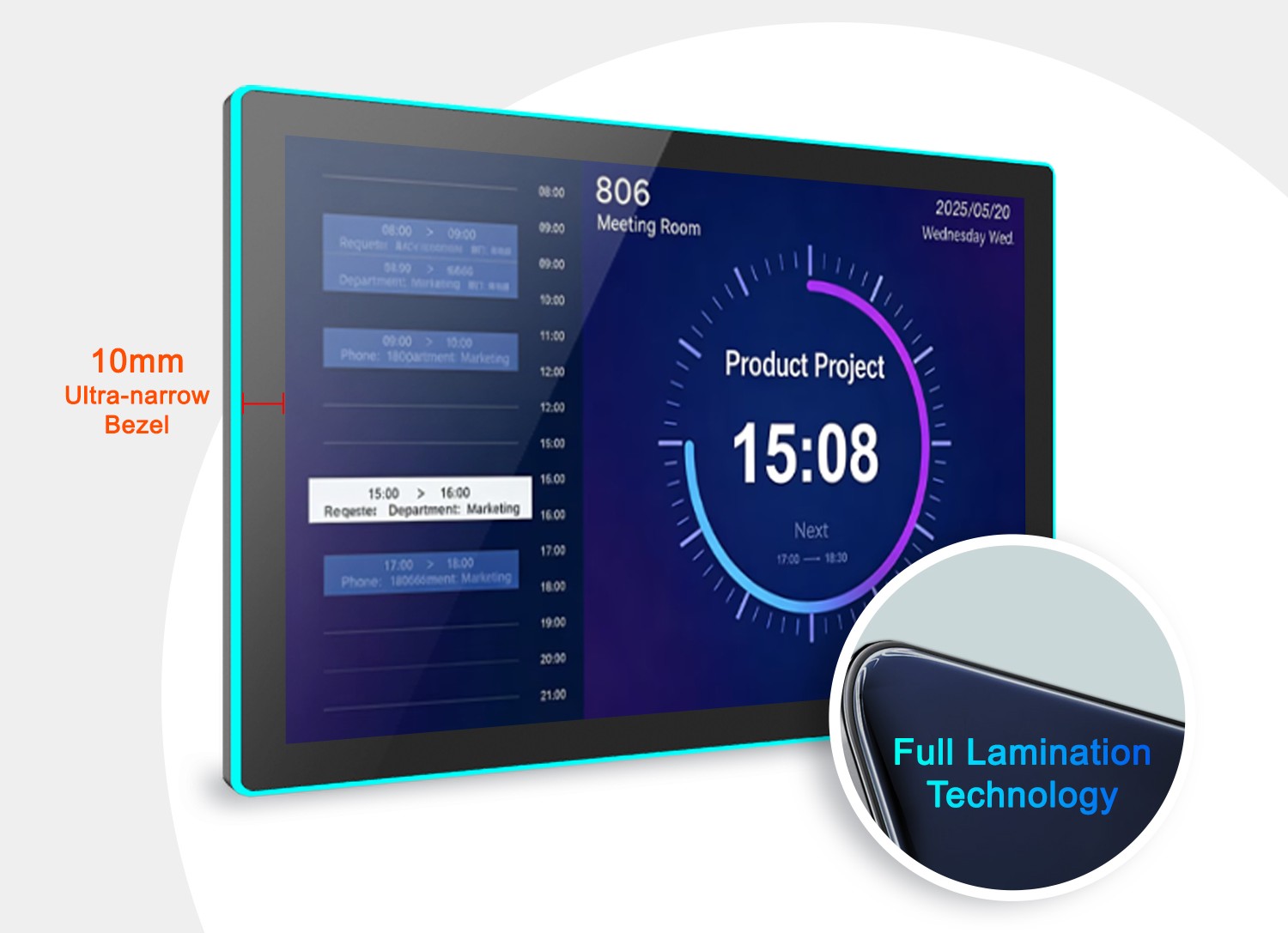

Premium Aesthetics for Modern Offices
Elevate your smart office with a premium 10.1″ HD IPS touch display framed by an ultra-narrow bezel. Designed to perfectly complement glass or wood corporate walls, it delivers crisp readability and highly responsive 10-point capacitive touch for seamless user interactions.
Intuitive LED Room Status
Maximize workspace transparency with programmable edge LED light bars. By integrating with your scheduling APIs, these vibrant indicators display real-time room availability at a glance (e.g., Red for occupied, Green for available), instantly preventing meeting interruptions.

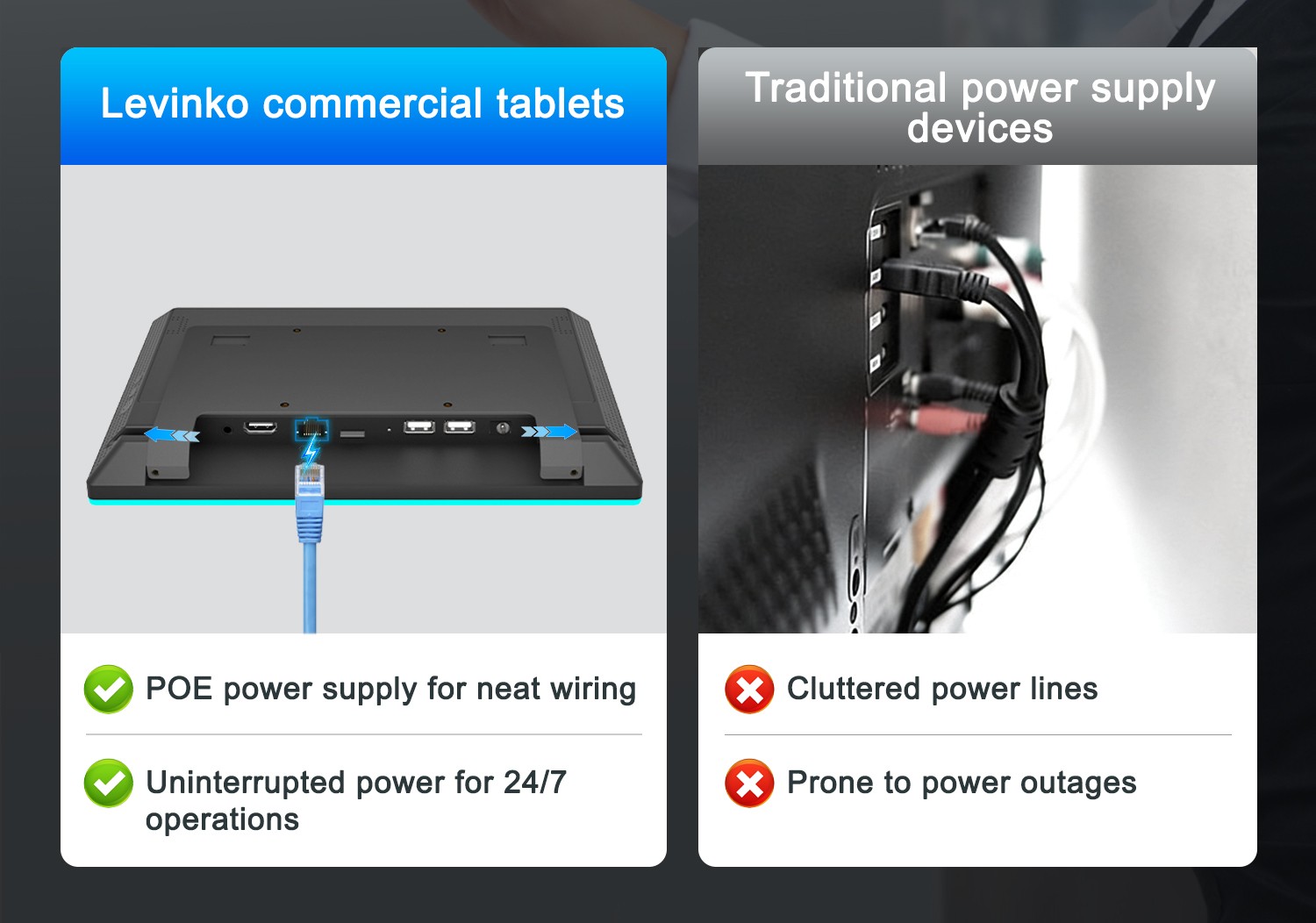

Simplified PoE Deployment
Cut down on heavy infrastructure costs and messy wiring. Our native Power over Ethernet (PoE) technology delivers both a highly stable 100M wired network and power supply through one single standard RJ45 cable, ensuring a neat, clutter-free installation.

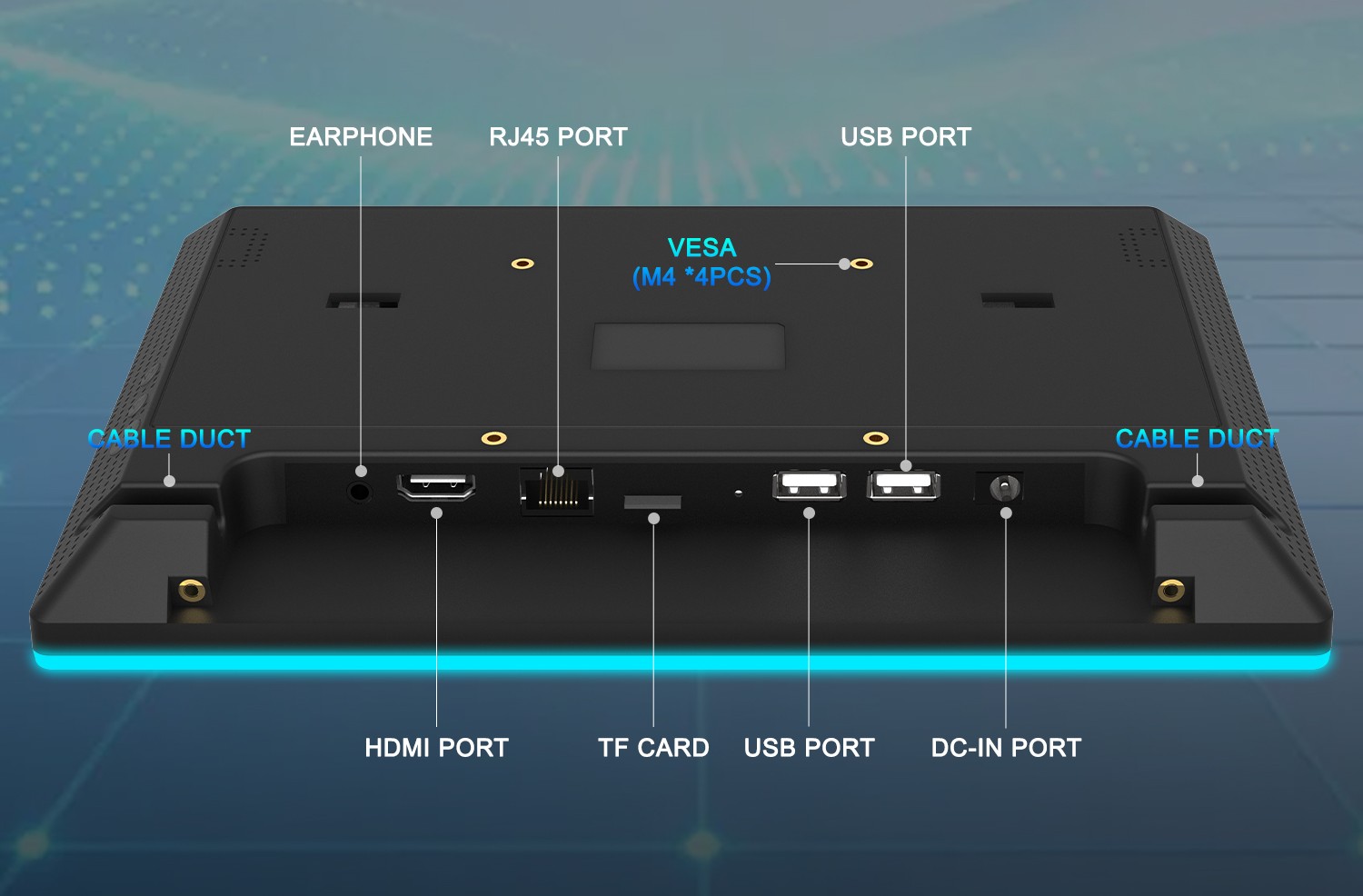

Concealed Commercial I/O Hub
Built fundamentally for commercial integrators, the PW1031T features a deeply concealed rear I/O panel. Equipped with dual USB ports, an HDMI output, and RJ45 Ethernet, it provides robust physical connections for external peripherals while keeping all cables completely hidden from users.
Deep Ecosystem Binding via NFC
Effortlessly bridge physical security with your software ecosystem. Empowered by the optional built-in NFC/RFID module and fully open Android APIs, developers can enable instant employee ID badge swiping directly on the panel for secure event check-ins and access control.
